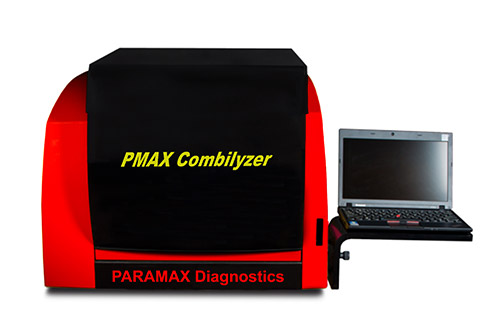

PMAX Combilyzer
ThunderBolt EIA-CL
Cat Code: PA-337
PMAX Combilyzer is a fully automated Chemiluminescence closed system analyzer. The PMAX Combilyzer is a high sensitive instrument for the Chemiluminescence applications. With a host of patented features, PMAX Combilyzer automation gives your lab the speed and quality you demand. Have confidence that the PMAX Combilyzer will improve operations, quality and the bottom line for your lab.
General specifications
| Intelligent Racks | Automatic sample location management. |
| System Architecture | Closed for PMAX Chemiluminescence test menu |
| High Precision Micro-Syringe | Aspirate 1µl with less than 3% CV. |
| Forced Convection Incubator | Evenly heats using forced air to eliminate "Edge Effect". |
| On-board Camera | Probe-mounted camera allows remote troubleshooting. |
| Sliding Sample Tray | Easy loading and unloading of samples. |
| Built-in Barcode Reader | Streamline loading and decrease sample tracking errors. |
| Orbital MTP Shaker | Better adherence to assay protocols, no splash. |
| Small Footprint | Fits on a 60cm deep standard laboratory bench. |
Technical specification and Sample loading
| Sample Capacity | 192 patient sample positions |
| Reagent Positions | 16 custom reagent positions |
| Test Tube Size(s) | Standards 12, 13 or 16 x 75 mm tubes (custom racks also available) |
| MTP Positions | 2 positions |
| Pre-dilution MTP Positions | 1 position |
| Well-Tracking | Independent well tracking and timing |
| Wash bottles | 2 external wash bottles |
| Probe/Needle | Single probe, dual needle |
| Dispense Volume | Up to 500 µl |
| Aspiration Volume | 1 µl |
| Incubation Temperature |
Up to 40 ºC |
| Photometer Wavelengths |
405, 450, 490, 550 and 630 nm wavelengths standard (Custom wavelengths available) |
| Chemiluminescence Photomultiplier Tube (PMT) |
Detection type: glow, Spectral range: 300-500 nm, Dark count: 50 counts per second (standard), Measuring time: 200 ms (adjustable 1 to 1000 ms), Dynamic range: 6 decades (optional add-on). |
| Orbital MTP Shaker | Amplitude: 1mm, Speed: Up to 900 RPM, Capacity: 3 MTP (2 reaction, 1 pre-dilution). |
| Power Supply | 120-265V, 50-60Hz |
| Dimensions | W: 64 cm, D: 57 cm, H: 45 cm (W: 25.2 in, D: 22.5 in, H: 17.7 in) |
| CE Listed | Yes |
Reagent Loading
- 12 reagents on board
- Up to 185 sample tubes
- Time to first result:20 minutes
- Barcode tag storing all info of reagent
- Barcode tag with built-in master curve
- Constant 37C incubation
- 15-29C Operating Temperature
Reagent Feature
- Integrated kit, ready-to-use, no pretreatment required
- Integrated kit including calibrators
- 2-point calibration to adjust master curve
- Calibration stability: Max 4 weeks
PMAX Combilyzer software provides all the features your lab requires it also adapts to your laboratory to enable maximum productivity and deliver highly reliable results , and more. Intuitive operation allows for easy training and ongoing use.The Report Designer performs required calculations and results analysis in real-time. Computations include: Point to point, linear regression, cubic spline, 4PL, 5 PL, Lin-Lin, Lin-Log, and Log-Log representation.
Software specification
| Language | Multi-language support |
| Calculations | Point to point, linear regression, cubic spline, 4PL, 5 PL, Lin-Lin, Lin-Log, Log-Log representation |
| LIS Integration | Bi-directional, RS232, USB, TCP/IP |
| User Interface | MS Windows Graphical User Interface (Windows 7, Windows 8) |
List of available assays
Cat# Category Product name Size Format
| PA-101 | Chemi-Thyroid | T3 Pmax Chemi | 96 Tests | Chemi |
| PA-102 | Chemi-Thyroid | T4 Pmax Chemi | 96 Tests | Chemi |
| PA-103 | Chemi-Thyroid | TSH Pmax Chemi | 96 Tests | Chemi |
| PA-104 | Chemi-Thyroid | T-Uptake Pmax Chemi | 96 Tests | Chemi |
| PA-105 | Chemi-Thyroid | FT3 Pmax Chemi | 96 Tests | Chemi |
| PA-106 | Chemi-Thyroid | FT4 Pmax Chemi | 96 Tests | Chemi |
| PA-115 | Chemi-Autoimmune | ANA Pmax Chemi | 96 Tests | Chemi |
| PA-116 | Chemi-Autoimmune | ds-DNA Pmax Chemi | 96 Tests | Chemi |
| PA-117 | Chemi-Autoimmune | Gliadin IgG Pmax Chemi | 96 Tests | Chemi |
| PA-118 | Chemi-Autoimmune | Gliadin IgM Pmax Chemi | 96 Tests | Chemi |
| PA-119 | Chemi-Autoimmune | Cardiolipin IgG Pmax Chemi | 96 Tests | Chemi |
| PA-120 | Chemi-Autoimmune | Cardiolipin IgM Pmax Chemi | 96 Tests | Chemi |
| PA-121 | Chemi-Autoimmune | Anti TPO Pmax Chemi | 96 Tests | Chemi |
| PA-122 | Chemi-Autoimmune | Anti TG Pmax Chemi | 96 Tests | Chemi |
| PA-123 | Chemi-Anemia | Ferritin Pmax Chemi | 96 Tests | Chemi |
| PA-124 | Chemi-Anemia | Folate Pmax Chemi | 96 Tests | Chemi |
| PA-125 | Chemi-Anemia | B12 Pmax Chemi | 96 Tests | Chemi |
| PA-127 | Chemi-Bone Metabolism | Vitamin D Pmax Chemi | 96 Tests | Chemi |
| PA-128 | Chemi-Bone Metabolism | PTH Pmax Chemi | 96 Tests | Chemi |
| PA-129 | Chemi-Bone Metabolism | Calcitonin Pmax Chemi | 96 Tests | Chemi |
| PA-140 | Chemi-Cancer Marker | CA125 Pmax Chemi | 96 Tests | Chemi |
| PA-141 | Chemi-Cancer Marker | CA 19 9 Pmax Chemi | 96 Tests | Chemi |
| PA-142 | Chemi-Cancer Marker | CA 15 3 Pmax Chemi | 96 Tests | Chemi |
| PA-143 | Chemi-Cancer Marker | CEA Pmax Chemi | 96 Tests | Chemi |
| PA-144 | Chemi-Cancer Marker | PSA Pmax Chemi | 96 Tests | Chemi |
| PA-145 | Chemi-Cancer Marker | AFP Pmax Chemi | 96 Tests | Chemi |
| PA-146 | Chemi-Cancer Marker | f-PSA Pmax Chemi | 96 Tests | Chemi |
| PA-156 | Chemi- Cardiac Marker | CKMB Pmax Chemi | 96 Tests | Chemi |
| PA-157 | Chemi- Cardiac Marker | cTnI Pmax Chemi | 96 Tests | Chemi |
| PA-158 | Chemi- Cardiac Marker | Digoxin Pmax Chemi | 96 Tests | Chemi |
| PA-159 | Chemi- Cardiac Marker | Myoglobin Pmax Chemi | 96 Tests | Chemi |
| PA-160 | Chemi- Cardiac Marker | Hs-CRP Pmax Chemi | 96 Tests | Chemi |
| PA-169 | Chemi- Infectious | H.Pylori IgG Pmax Chemi | 96 Tests | Chemi |
| PA-170 | Chemi- Infectious | H.Pylori IgM Pmax Chemi | 96 Tests | Chemi |
| PA-182 | Chemi- Endocrinology | Insulin Pmax Chemi | 96 Tests | Chemi |
| PA-183 | Chemi- Endocrinology | C-Peptide Pmax Chemi | 96 Tests | Chemi |
| PA-184 | Chemi- Endocrinology | ACTH Pmax Chemi | 96 Tests | Chemi |
| PA-185 | Chemi- Endocrinology | HGH Pmax Chemi | 96 Tests | Chemi |
| PA-191 | Chemi- Fertility | FSH Pmax Chemi | 96 Tests | Chemi |
| PA-192 | Chemi- Fertility | PRL Pmax Chemi | 96 Tests | Chemi |
| PA-193 | Chemi- Fertility | LH Pmax Chemi | 96 Tests | Chemi |
| PA-194 | Chemi- Fertility | HCG Pmax Chemi | 96 Tests | Chemi |
| PA-196 | Chemi- Fertility | PAPP A Pmax Chemi | 96 Tests | Chemi |
| PA-204 | Chemi- Steroid | Cortisol Pmax Chemi | 96 Tests | Chemi |
| PA-205 | Chemi- Steroid | DHEA Pmax Chemi | 96 Tests | Chemi |
| PA-206 | Chemi- Steroid | Progesterone Pmax Chemi | 96 Tests | Chemi |
| PA-207 | Chemi- Steroid | Testosterone Pmax Chemi | 96 Tests | Chemi |
| PA-208 | Chemi- Steroid | 17OHP Pmax Chemi | 96 Tests | Chemi |
| PA-209 | Chemi- Steroid | DHEAS Pmax Chemi | 96 Tests | Chemi |
| PA-210 | Chemi- Steroid | f-Testosterone Pmax Chemi | 96 Tests | Chemi |
| PA-211 | Chemi- Steroid | UE3 Pmax Chemi | 96 Tests | Chemi |
| PA-212 | Chemi- Steroid | E2 Pmax Chemi | 96 Tests | Chemi |
| PA-225 | Chemi- Gastro Intestinal | NGAL Pmax Chemi | 96 Tests | Chemi |
| PA-226 | Chemi-Alergy | IgE Pmax Chemi | 96 Tests | Chemi |
